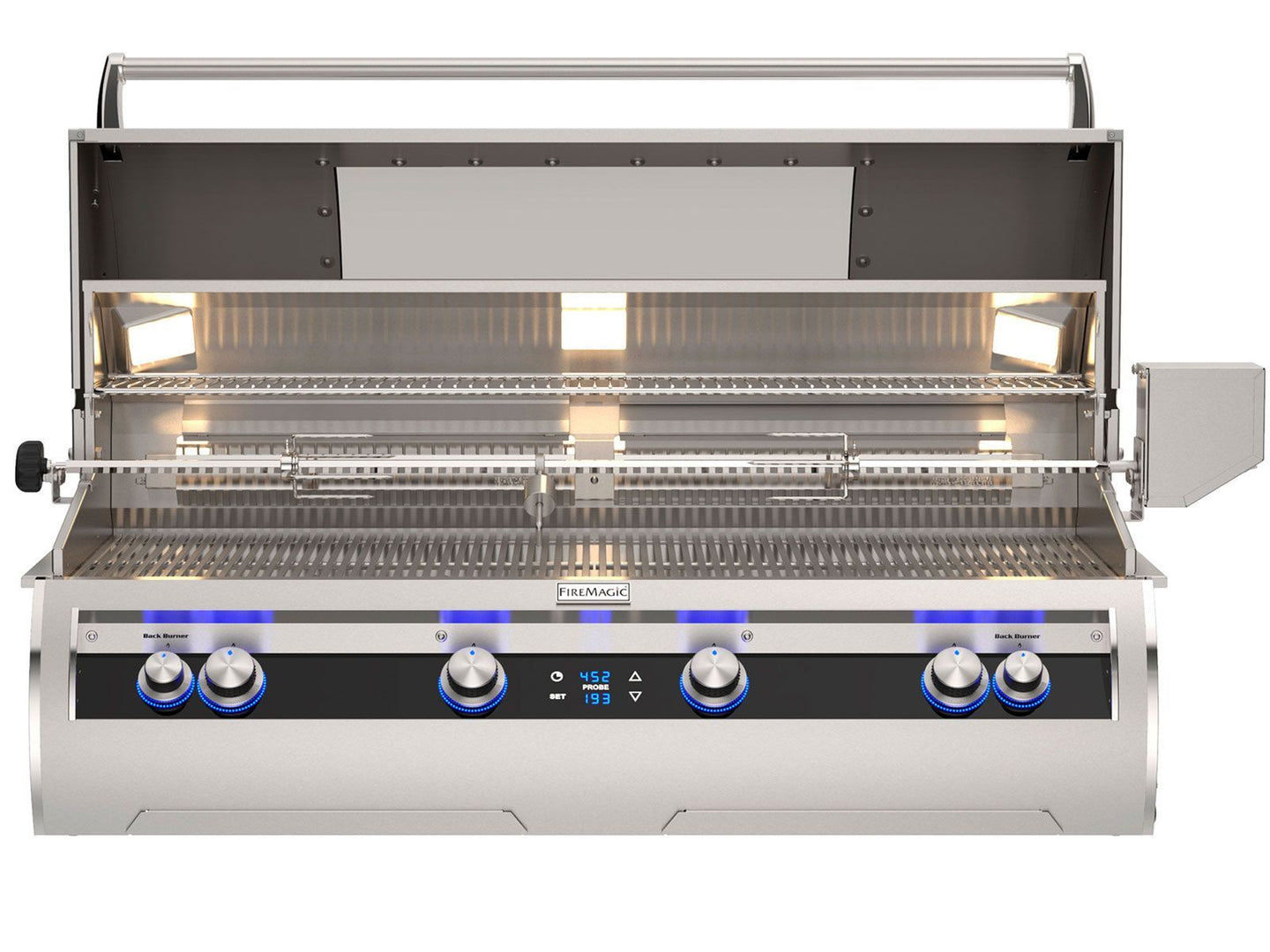

The Fire Magic Echelon Diamond E1060i 52-Inch Built-In Gas Grill with Magic Window & Digital Thermometer is a premium built-in outdoor grill designed for luxury outdoor kitchens. It features a Magic Window built into the double-walled lid, allowing you to monitor food while cooking without opening the hood. This grill also includes a digital thermometer with smartphone app control, Bluetooth capability, back-lit control knobs, and interior/exterior grill lights for convenient day or night grilling. Built with durable 304 stainless steel and four 304 cast stainless steel burners, it delivers 112,000 BTUs across a large 1,440 square inch total cooking area. With Diamond Sear cooking grids, heat zone separators, a heavy-duty rotisserie kit, smoker box, and spring-assisted hood, this Echelon Diamond grill offers powerful performance, smart features, and professional-grade construction.

Key Features:

  • 52-inch built-in gas grill
  • Echelon Diamond collection

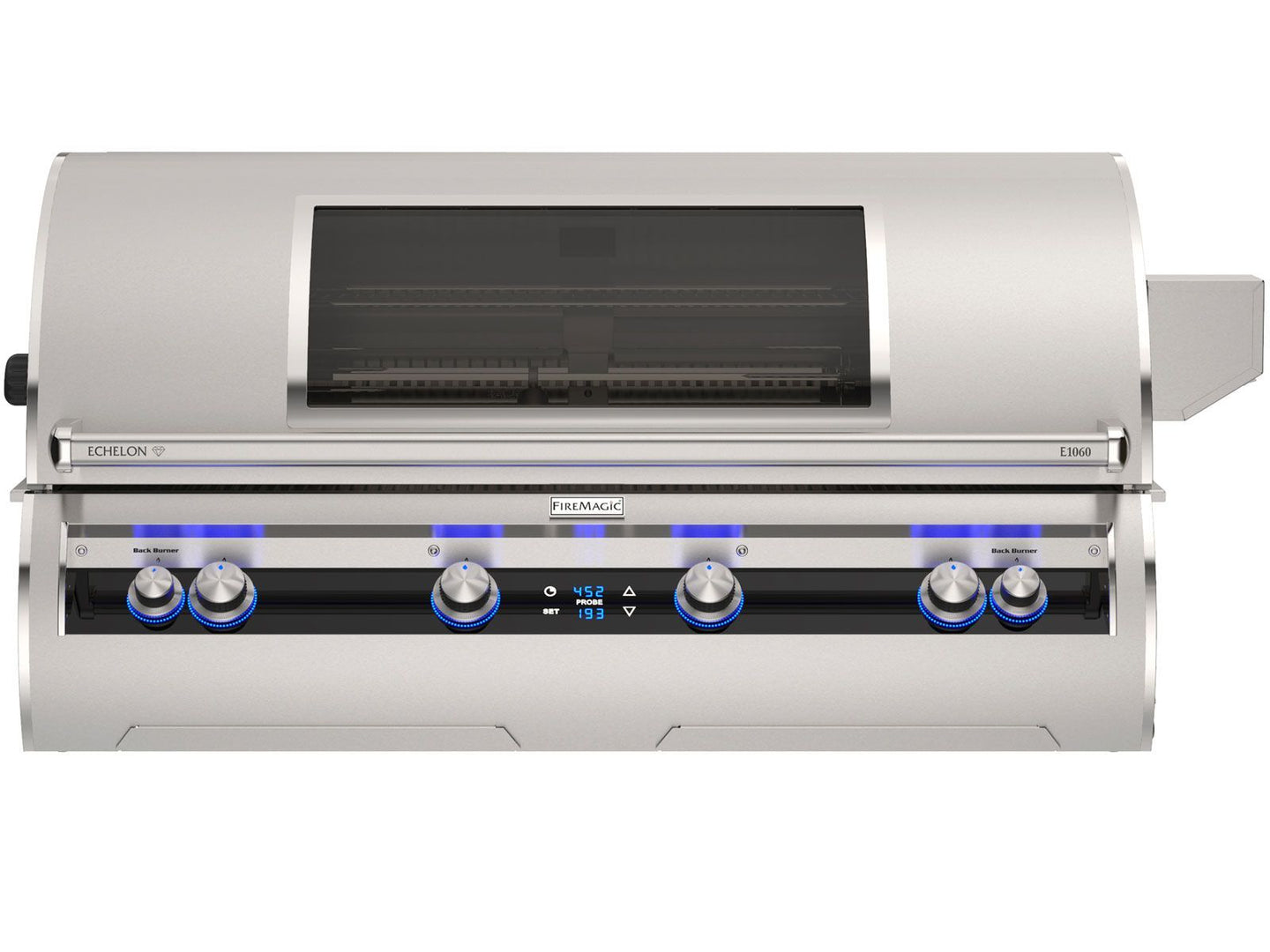

  • Magic Window built into the double-walled lid

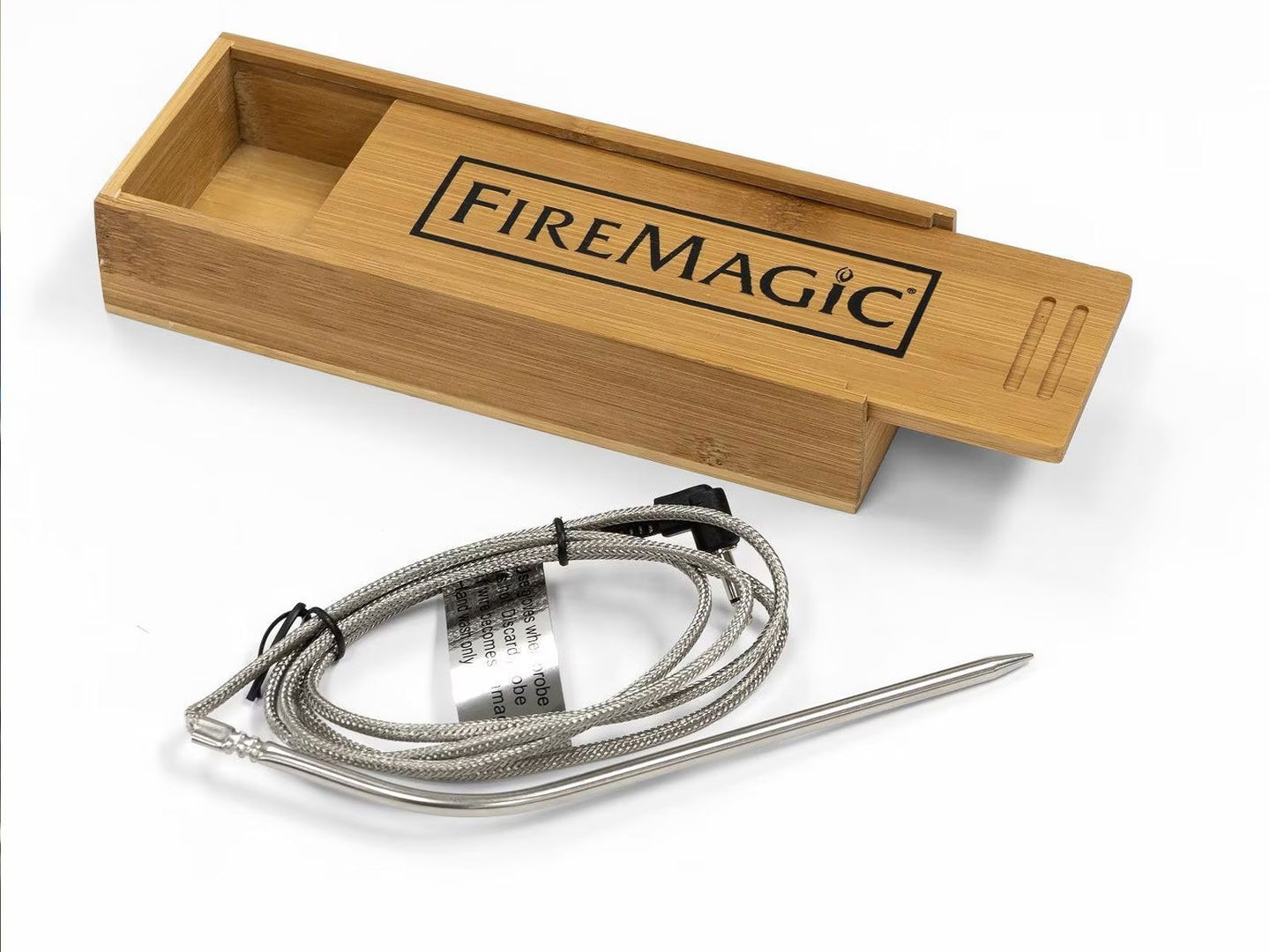

  • Digital thermometer with smartphone app control
  • WiFi / Bluetooth enabled

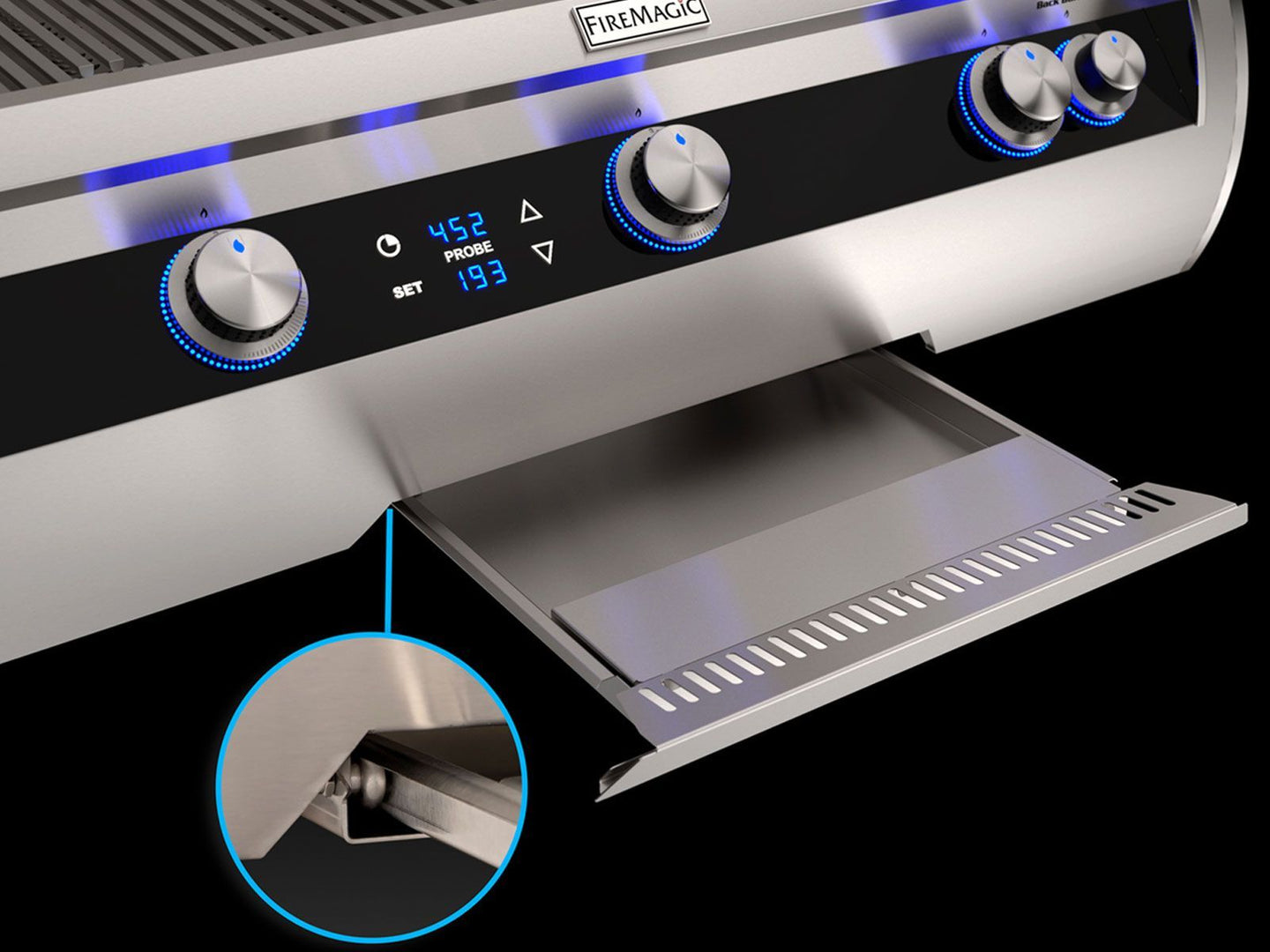

  • Modern black glass control panel

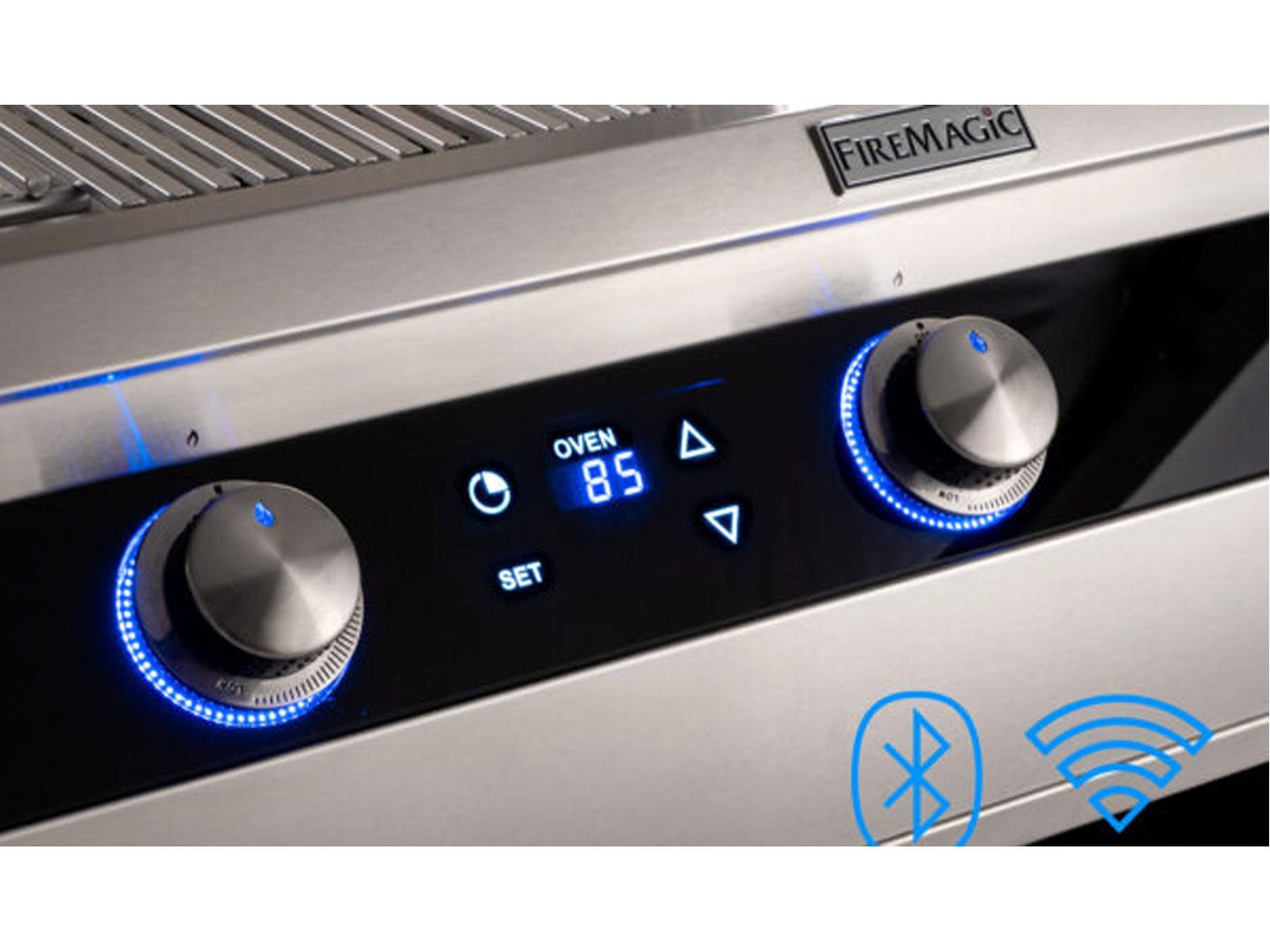

  • Digital touchscreen operation
  • Back-lit control knobs

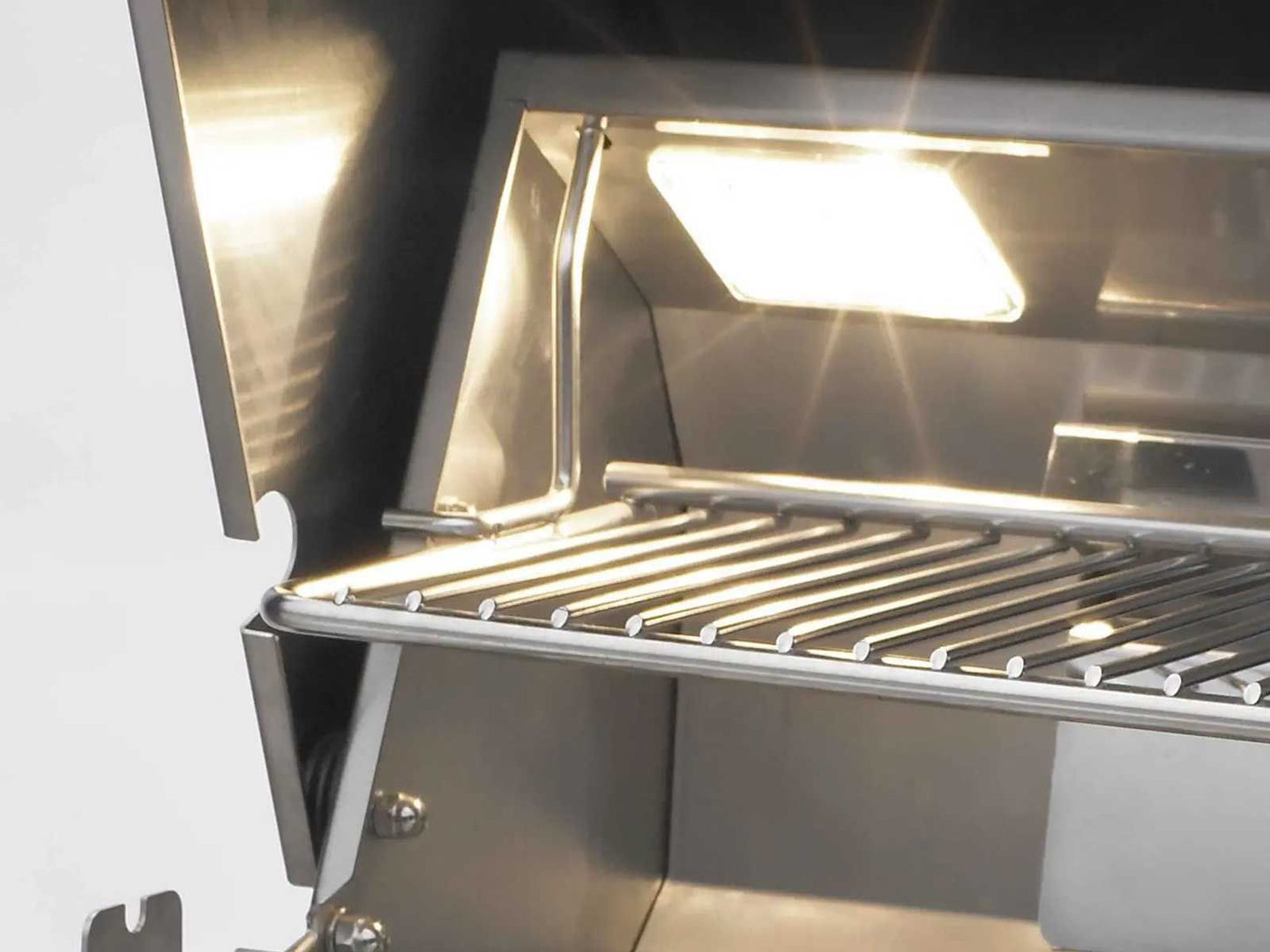

  • Interior and exterior grill lights
  • 4 main burners
  • 112,000 BTUs grilling surface output

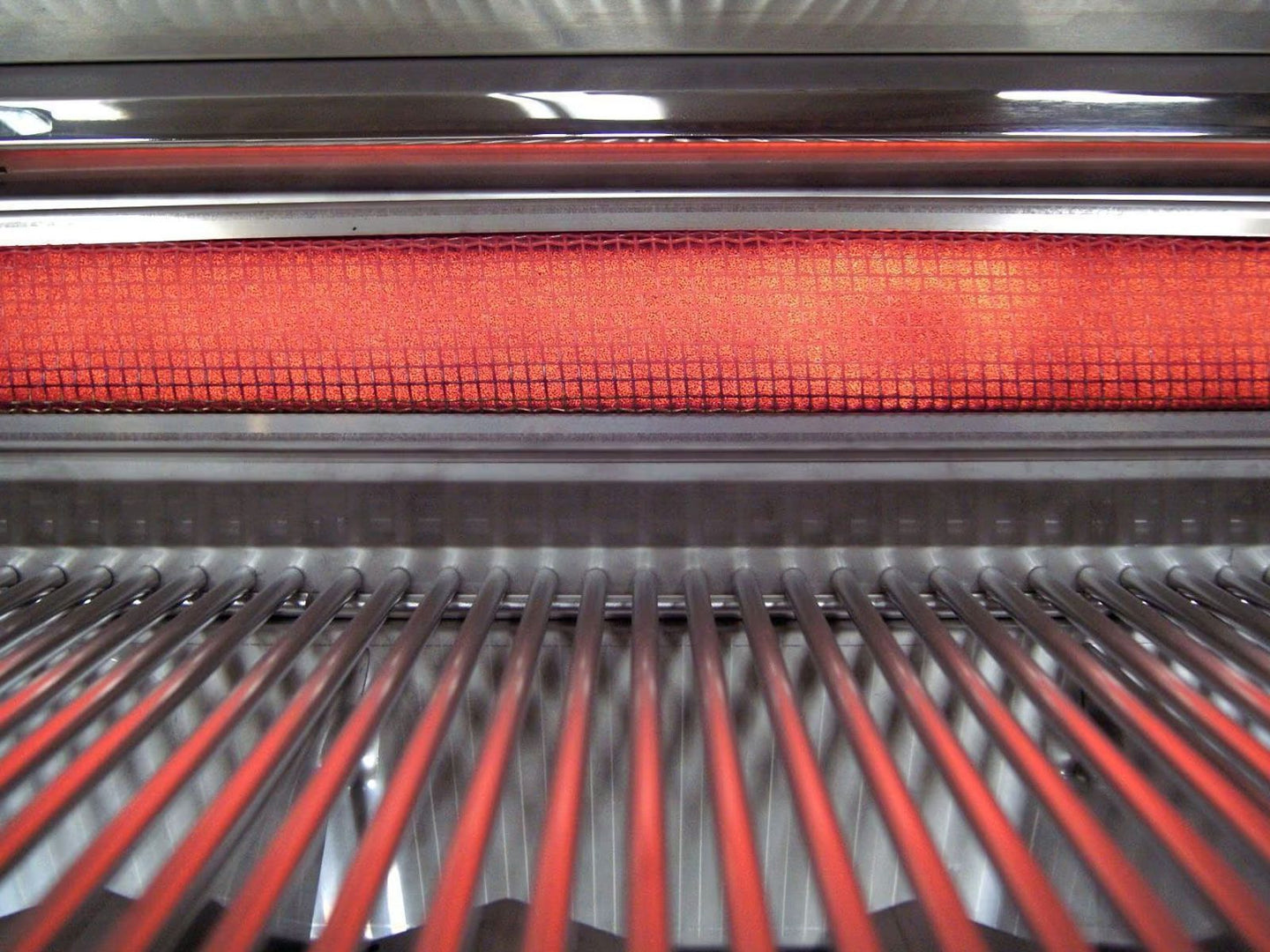

  • 22,000 BTU rotisserie burner
  • 1,056 sq. in. main grilling area
  • 344 sq. in. secondary grilling area
  • 1,440 sq. in. total grilling area
  • 48" W x 22" D cooking grid dimensions
  • 304 stainless steel exterior construction

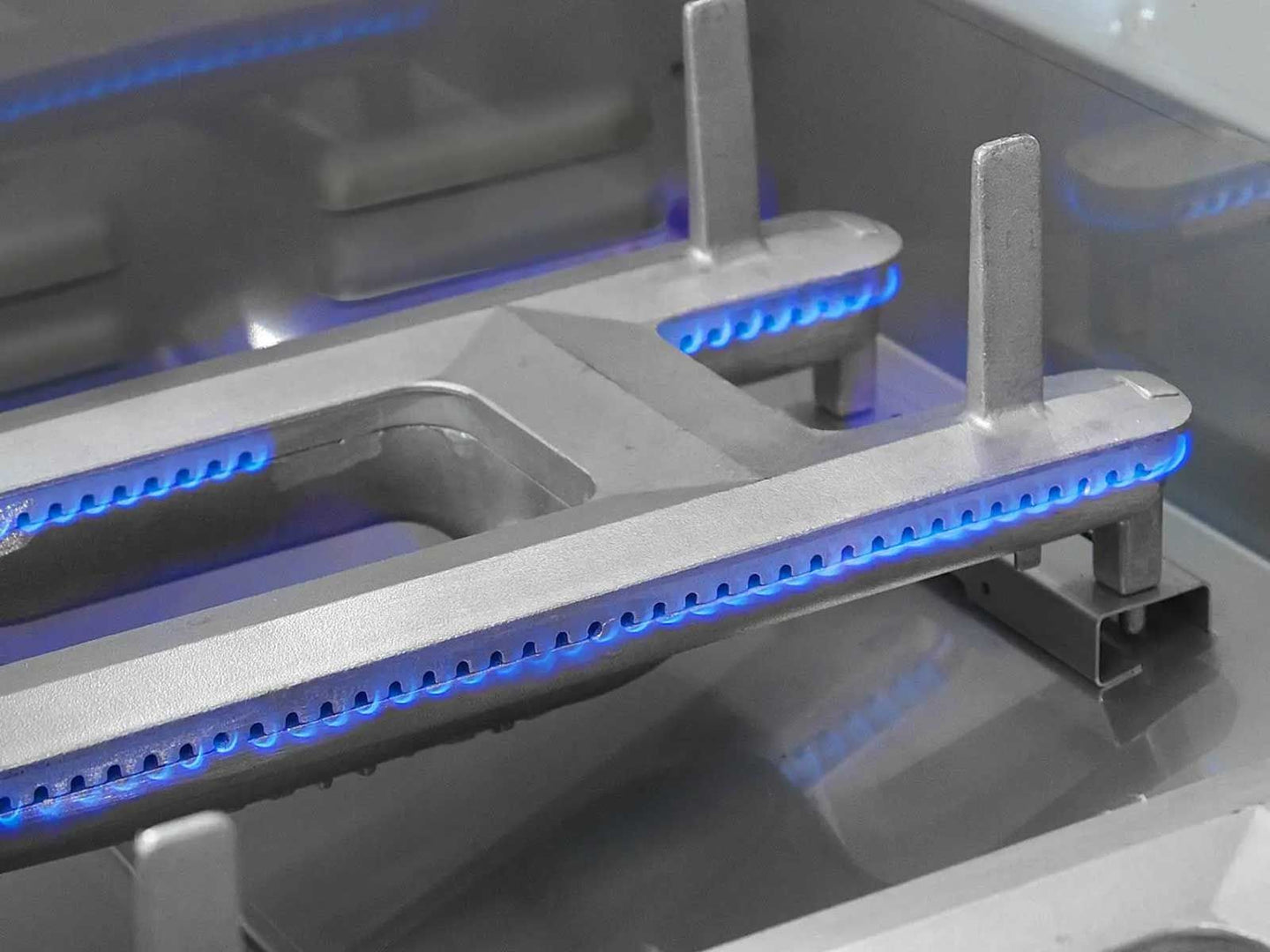

  • 304 cast stainless steel main burners

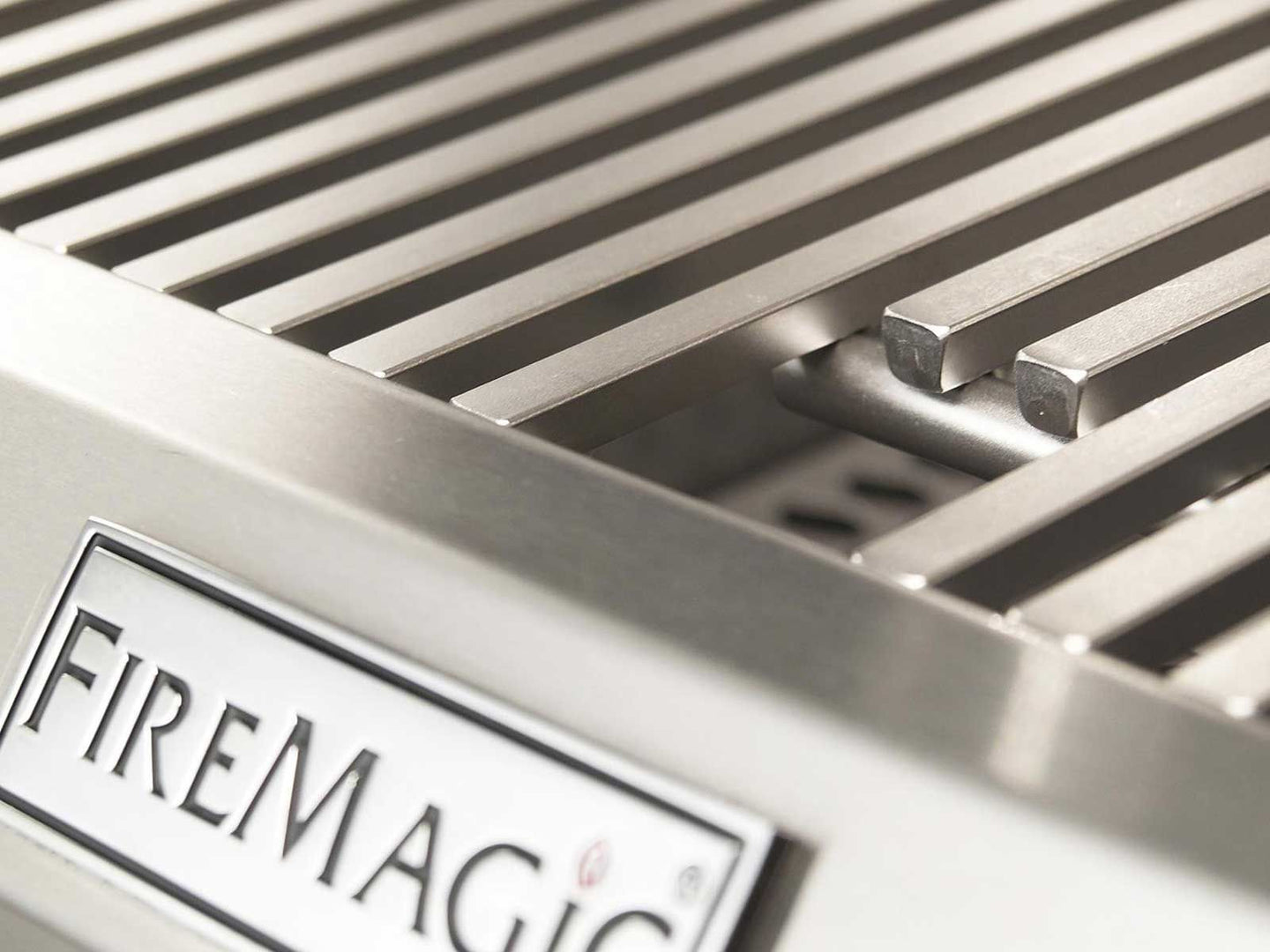

  • Diamond Sear stainless steel cooking grids

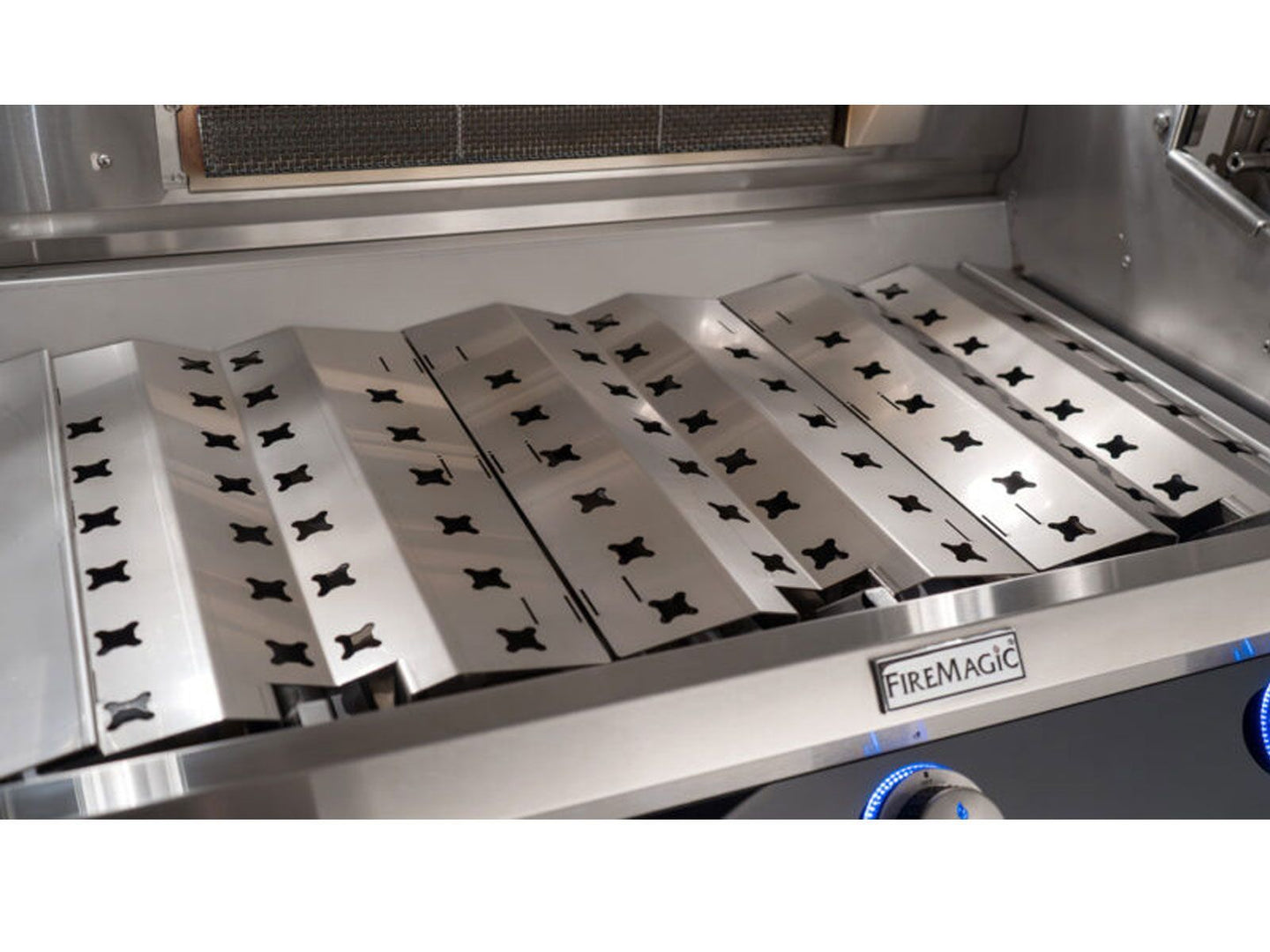

  • Stainless steel flame tamers
  • Heat zone separators

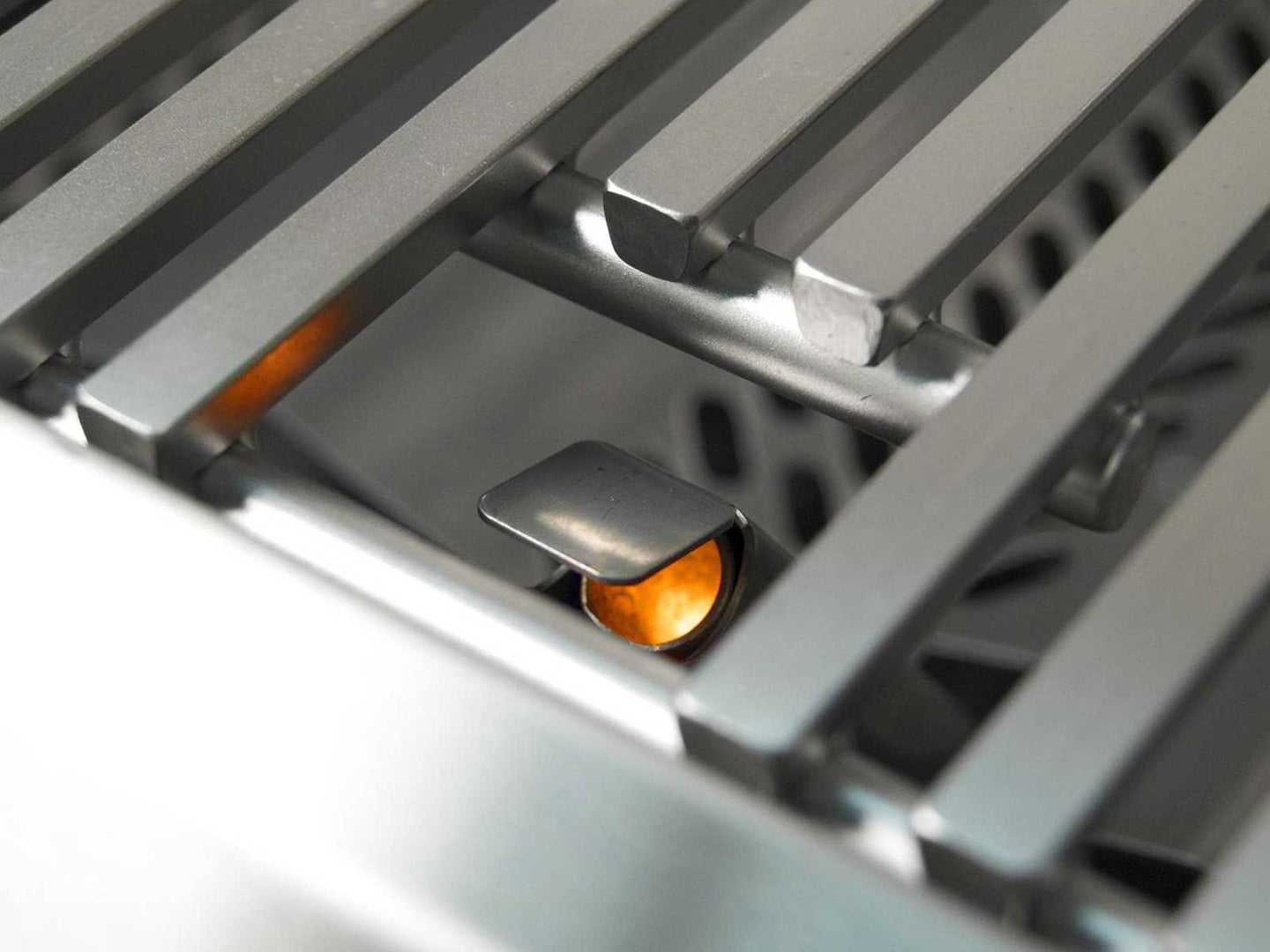

  • Hot surface ignition
  • Flash tubes

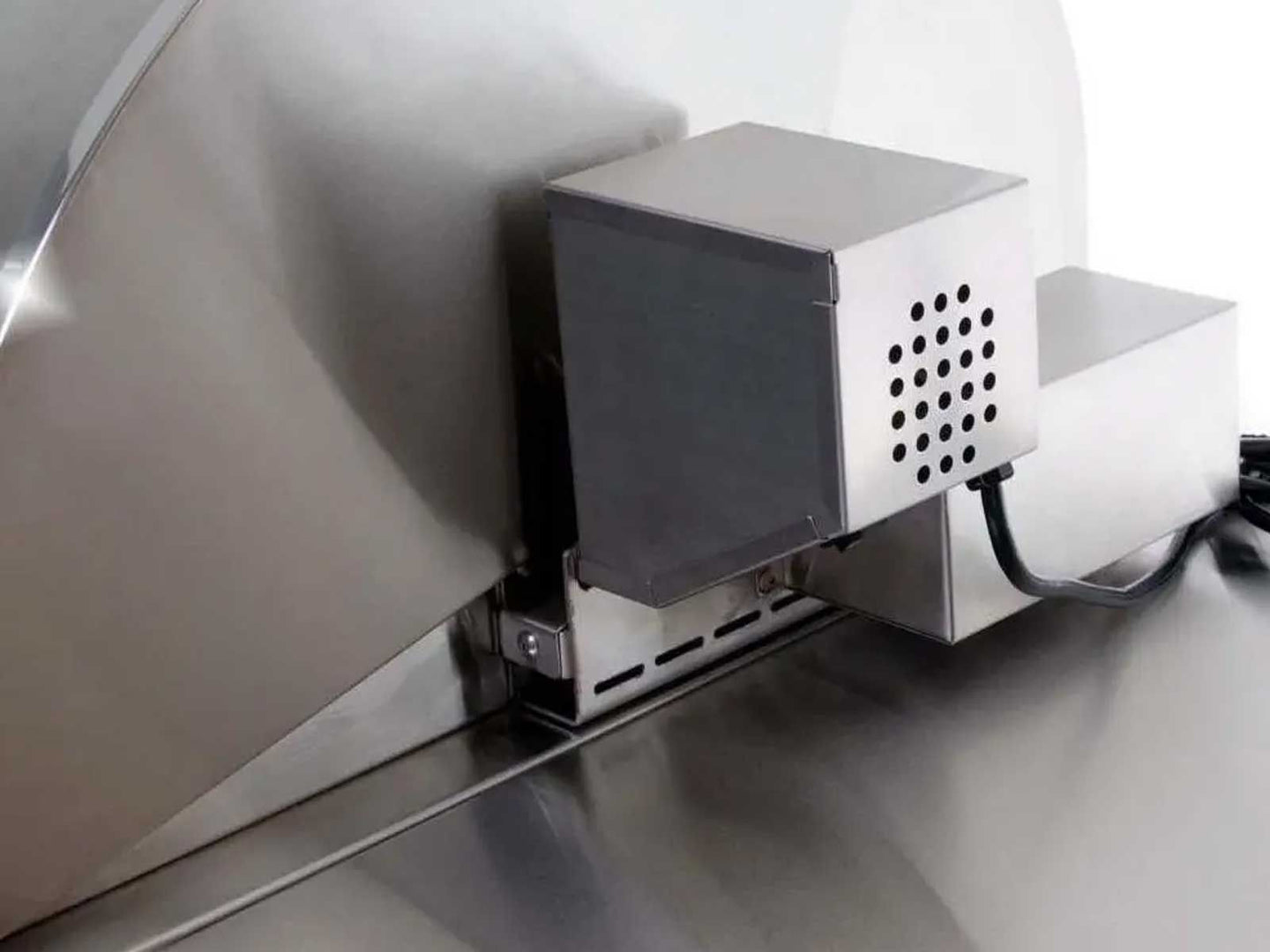

  • Included rotisserie kit

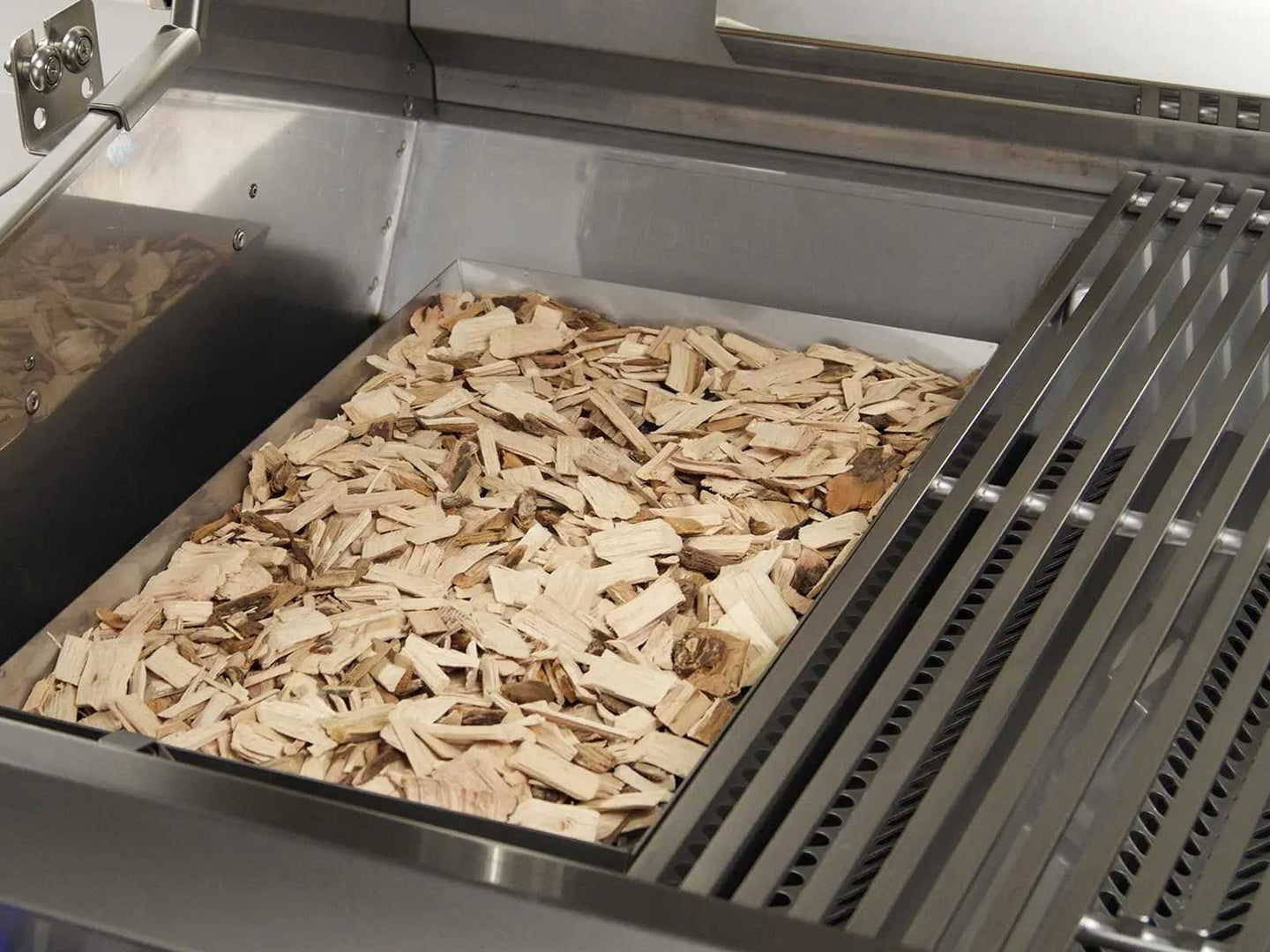

  • Includes smoker box

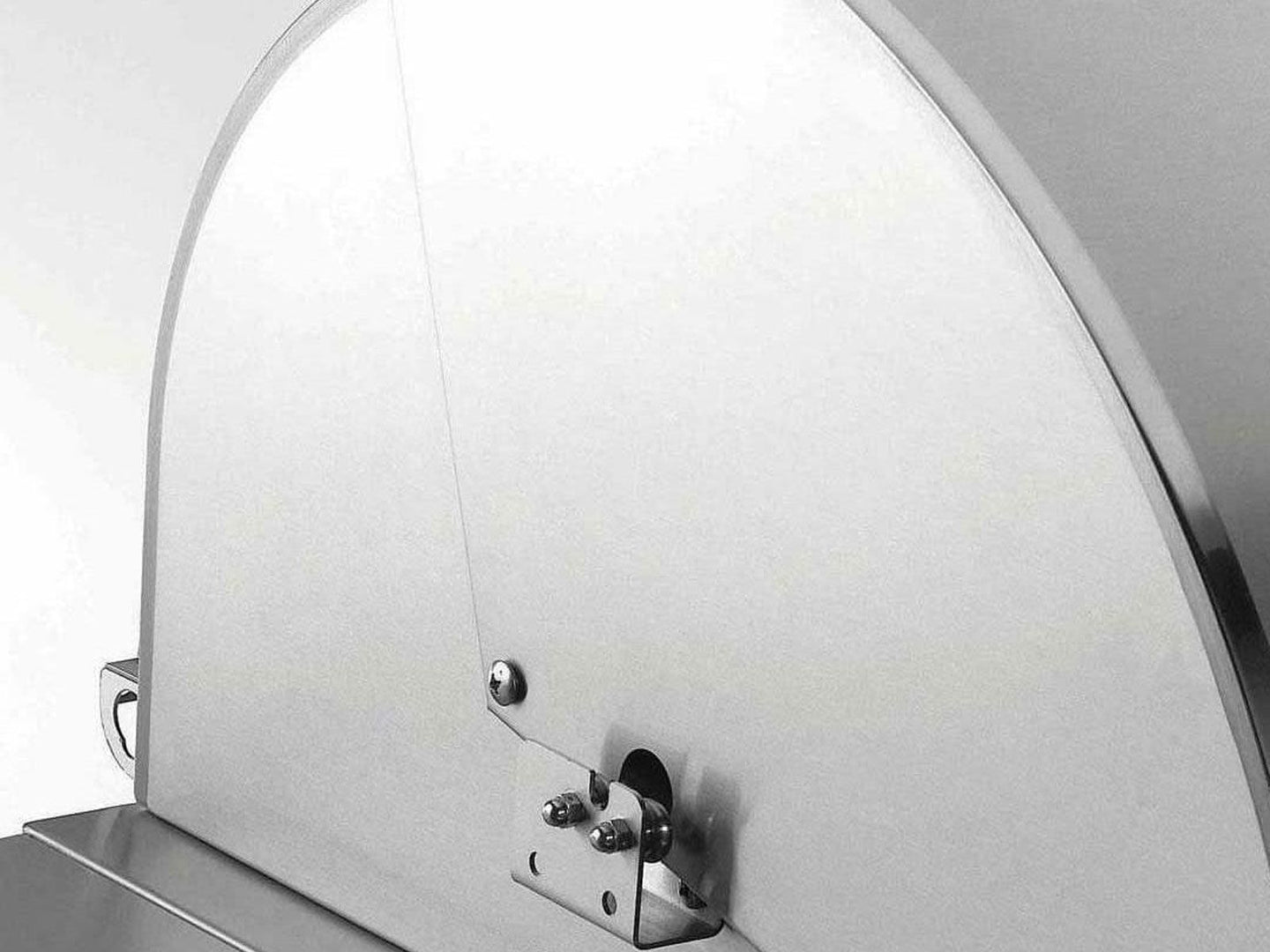

  • Spring-assisted hood
  • Available in natural gas or propane
  • Made in the USA
  • Commercial grade design



Highlights

For more than 80 years, Fire Magic has been building the world’s finest outdoor gas grills, for people who demand the highest quality and performance. Their passion for manufacturing the best gas grills comes through in the pride of ownership that you’ll enjoy for a lifetime.

Manufacturer Fire Magic
Collection Name Echelon Diamond
Model E1060i-9E1N-W, E1060i-9E1P-W
Item Type Gas Grill
Configuration Built-In
Fuel Type Natural Gas | Propane
Number of Main Burners 4 Burners
Main Grilling Area 1056 square inches
Secondary Grilling Area 344 square inches
Total Grilling Area 1440 square inches
Grilling Surface BTUs 112,000 BTUs
Cooking Grid Dimensions 48" W x 22" D


Downloads

Please select from the Fire Magic product brochures and other documents below to learn more about this product.

Dimensions

All dimensions below are measured in inches and represent the product when fully assembled.

Width 50"
Depth 23.5"
Height 27"
Weight 350 Lbs
Cut Out Dimensions 50" W x 23 1/2" D x 11 1/2" H


Specifications

Specifications, data and other product details are listed below for this Fire Magic item.

Exterior Material Stainless Steel
Rotisserie Burner BTUs 22,000 BTUs
Exterior Stainless Grade 304 Stainless Steel
Primary Color Stainless Steel
Main Burner Material 304 Cast Stainless Steel
Cooking Grate Material Stainless Steel
Flame Tamer Material Stainless Steel
Infrared Main Burner Optional
Rotisserie Kit Included
Heat Zone Separators Yes
Ignition Type Hot Surface
Flash Tubes Yes
Grill Lights Internal | External
Spring Assisted Hood Yes
Thermometer Digital | Smart Phone App
Includes Smoker Box Yes
WiFi / Bluetooth Enabled Yes
Marine Grade No
Made in the USA Yes
Commercial Grade Yes
Hose / Regulator Included Yes
Extra Features N/A


Warranty

Fire Magic provides a lifetime warranty for cast stainless burners, stainless cooking grids and housings. Stainless flame tamers are warranted for five years, all other components (except ignition and electronic parts) for three years, ignition systems (except batteries) and electronic components (including lights & thermometers) for one year. A limited two year labor warranty covers repairs up to $120. In a multi-user setting (excluding commercial use) this grill is warranted to be free from defects in material and workmanship for the stainless grill housing, burners, cooking grates, brass valves, inner lines and manifold assemblies for five years, all other components (except batteries) are warranted for one year.
